PESD24VL1BA是客戶咨詢比較多的一款常用料號，熱銷TVS二極管型號之一，可見市場對于PESD24VL1BA的需求量是非常大的。關于PESD24VL1BA這個物料，客戶更多咨詢的是其參數、價格、樣品、交期等方面的信息。接下來，TVS二極管廠家東沃電子傾心為您科普有關PESD24VL1BA的知識，看完您就明白了！

TVS二極管PESD24VL1BA詳解

The PESD24VL1BA is designed to replace multilayer varistors in portable applications such as cell phones, notebook computers and PDA’s, using monolithic sili-con technology to provide fast response time and ultra low ESD clamping voltage, making this device an ideal solution for protecting sensitive semiconductor components from damage. The PESD24VL1BA complies with the IEC 61000-4-2(ESD) standard with ±15kV air and ±8kV contact discharge. The PESD24VL1BA is assembled into a lead-free SOD-323 package and will protect one unidirectional line. These devices will fit on the same PCB pad area as an 0805 MLV device.

TVS二極管PESD24VL1BA特性

·420W peak pulse power (8/20μs)
·Protects one data or power line
·Ultra low leakage: nA level
·Operating voltage: 24V
·Ultra low clamping voltage
·Complies with following standards: IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-5 (Lightning) 9A (8/20ns)
·RoHS Compliant
·Lead Finish: Matte Tin

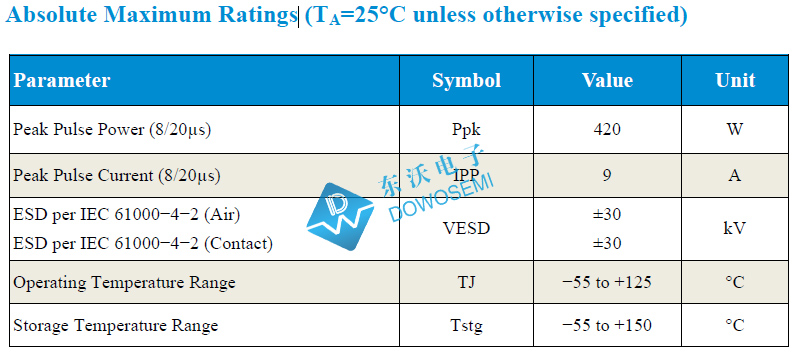

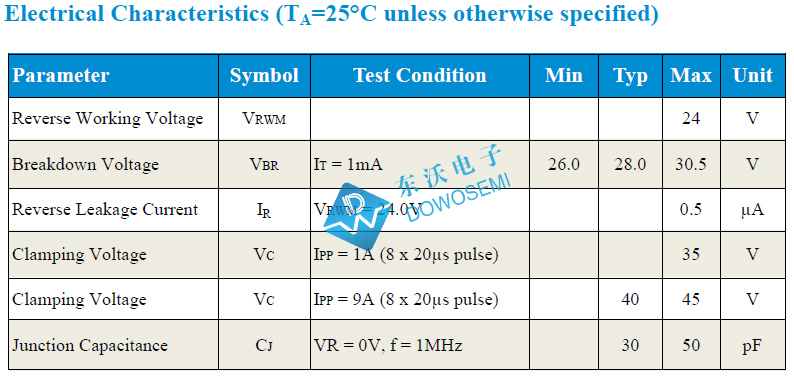

TVS二極管PESD24VL1BA參數

1）峰值脈沖功率Peak pulse power (tp = 8/20μs): 420W
2）峰值脈沖電流Peak pulse current (tp = 8/20μs): 9A
3）工作電壓Reverse Stand-off Voltage: 24V
4）擊穿電壓Reverse Breakdown Voltage (Min.): 26V
5）漏電流Reverse Leakage Current: 0.5uA
6）鉗位電壓Clamping Voltage ( IPP=9A tp=8/20us ): 40V
7）電容Junction Capacitance (VR=0V, f = 1MHz Between I/O pins): 30pF

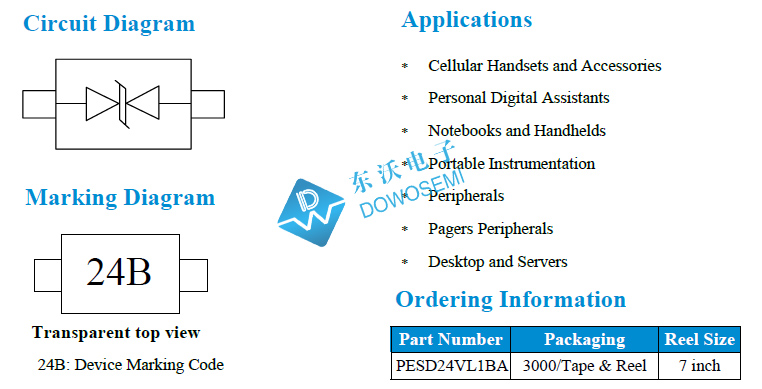

8）絲印標識Device Marking Code: 24B
9）封裝Package: SOD-323

關于TVS二極管PESD24VL1BA就介紹到這兒了，想了解PESD24VL1BA價格、交期、樣品等方面的信息，可直接咨詢東沃電子產品經理：136 7581 6901（微信同號）朱經理！
